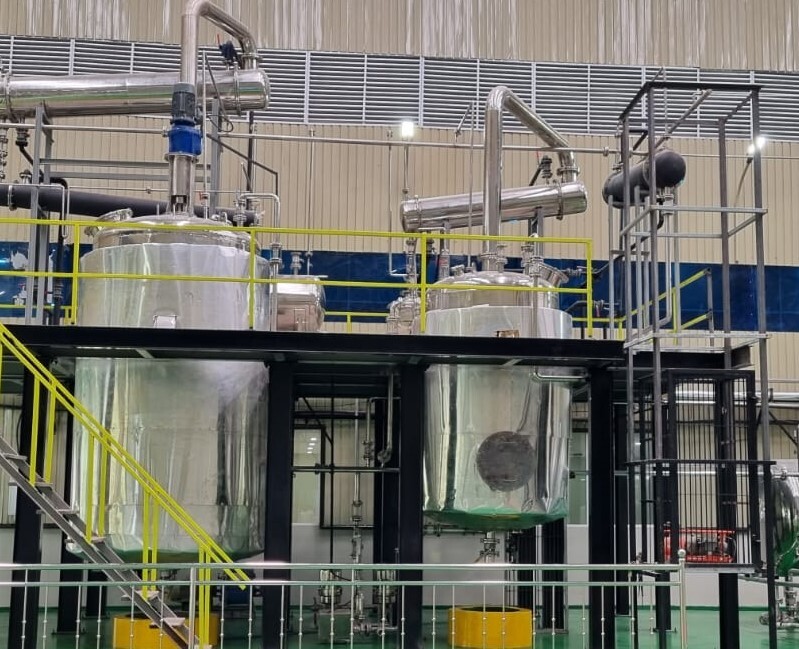

Citronella Oil Distillation Plant

Name: Citronella Oil Distillation Plant
Brand: Mech O Tech LLP
Price: 1000000 INR
Availability: InStock

1000000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Citronella Oil Distillation Plant
General Use Extraction of citronella oil from Cymbopogon plants
Material Stainless Steel (Grade SS304/SS316)
Capacity 500-2000 kg/batch (customizable)
Type Semi-Automatic/Automatic
Weight (kg) 1200-2800 kg (approx.)
Computerized No
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Citronella Oil Distillation Plant Price And Quantity

Price 1000000 INR/Piece
Minimum Order Quantity 1 Piece

Citronella Oil Distillation Plant Product Specifications

Dimension (L*W*H) Customized as per plant capacity
Product Type Citronella Oil Distillation Plant
Voltage 220-440 V
Automatic Yes
Control System PLC/Manual Control
Computerized No
Color Metallic Silver
Material Stainless Steel (Grade SS304/SS316)
Capacity 500-2000 kg/batch (customizable)
Weight (kg) 1200-2800 kg (approx.)
Feature Corrosion Resistant, High Efficiency, Easy Operation
General Use Extraction of citronella oil from Cymbopogon plants
Motor Electric Motor, 3-10 HP
Type Semi-Automatic/Automatic

Operating Temperature 100-110C
Output Purity High Purity Citronella Oil (up to 99%)
Power Consumption Varies with Capacity (Approx. 5-15 kW per batch)
Maintenance Low Maintenance (Easy to Clean Design)
Operating Pressure 1-2 bar
Safety Features Pressure Relief Valves, Thermal Insulation, Emergency Stop Switch
Receiver Tank Integrated Stainless Steel Tank with Oil Separator
Mobility Stationary or Skid Mounted Options
Installation Onsite Installation & Commissioning Available
Condensers Shell & Tube Type Stainless Steel Condensers
Production Time per Batch 2-4 hours
Heating System Steam/Direct Fire Heating
Distillation Type Steam Distillation

Citronella Oil Distillation Plant Trade Information

Delivery Time 5-10 Days

Product Description

A Citronella Oil Steam Distillation Plant is a facility designed specifically for the extraction of citronella oil through the process of steam distillation. Citronella oil is derived from the leaves and stems of certain species of Cymbopogon grass, primarily Cymbopogon nardus and Cymbopogon winterianus. It's widely known for its insect-repellent properties and is commonly used in various products such as candles, soaps, lotions, and insect repellents.

Here's a basic description of the components and processes typically found in a Citronella Oil Steam Distillation Plant:

Steam Generator: This is where water is heated to produce steam. The steam is then passed through the plant material to extract the essential oil.
Extraction Vessel: The plant material (citronella grass) is loaded into the extraction vessel. Steam is then introduced into the vessel, causing the oil glands in the plant material to burst and release the essential oil.
Condenser: After the essential oil is vaporized by the steam, it passes into a condenser where it is cooled and liquefied. This results in the separation of the essential oil from the steam.
Separator: Once condensed, the essential oil separates from the water and is collected. The water, known as the hydrosol or floral water, can also be collected separately.
Storage Tanks: The collected citronella oil is stored in tanks until it is ready for further processing or distribution.
Quality Control: Throughout the distillation process, quality control measures are implemented to ensure the purity and potency of the extracted citronella oil. This may include testing for factors such as aroma, color, and chemical composition.
By-Products Handling: By-products of the steam distillation process, such as spent plant material and hydrosol, are managed appropriately. The spent plant material can often be repurposed as compost or animal feed, while the hydrosol may be utilized in various applications such as aromatherapy or as a secondary product.
Safety Systems: Safety measures are in place to prevent accidents such as overheating, pressure buildup, or leaks of steam and essential oil.

Overall, a Citronella Oil Steam Distillation Plant is a sophisticated facility designed to efficiently and effectively extract citronella oil from raw plant material while maintaining product quality and safety standards.

Efficient and Safe Steam Distillation

Experience high-efficiency oil extraction using steam distillation, renowned for its ability to produce superior quality citronella oil. Equipped with advanced pressure relief systems, thermal insulation, and emergency stop switches, the plant ensures operator safety and process stability. Its stainless steel construction (SS304/SS316) guarantees long-lasting corrosion resistance and consistently high output purity.

Flexible Installation and Low Maintenance

Choose from stationary or skid-mounted configurations based on your operational needs. The plant is engineered for onsite installation and commissioning, ensuring a seamless setup process. Its easy-to-clean design and accessible components keep maintenance requirements minimal, supporting continuous and reliable operation for extractors of all scales.

Advanced Control and Customization Options

Operate the distillation plant effortlessly with user-friendly PLC or manual controls. The system is available in both semi-automatic and fully automatic variants and can be customized for capacities from 500 to 2000 kg per batch. Adjustable operating parameters and integrated oil separation maximize productivity while maintaining high purity standards.

FAQ's of Citronella Oil Distillation Plant:

Q: How does the steam distillation process work in this citronella oil plant?

A: The steam distillation process involves heating water to generate steam, which passes through the citronella biomass. Volatile oils vaporize and are then condensed in stainless steel shell & tube condensers. The oil and water mixture is separated in an integrated receiver tank, delivering pure citronella oil.

Q: What are the main benefits of using this distillation plant for citronella oil extraction?

A: Benefits include high purity oil (up to 99%), reliable corrosion-resistant stainless steel construction, low maintenance design, customizable capacity, and advanced safety features like pressure relief valves and emergency stops.

Q: When is onsite installation and commissioning available for the plant?

A: Onsite installation and commissioning are provided as part of the service offering once your order is finalized, ensuring expert setup and operational guidance at your facility.

Q: Where is the Citronella Oil Distillation Plant typically used?

A: This plant is used by commercial producers, exporters, importers, and suppliers for extracting citronella oil from Cymbopogon plants. It's suitable for use in essential oil manufacturing facilities and agro-processing industries.

Q: What makes the plant easy to maintain?

A: Its design features accessible components, smooth stainless steel surfaces, and easy-clean mechanisms, allowing operators to perform maintenance quickly and with minimal downtime.

Q: How customizable is the plant's capacity and configuration?

A: The plant's capacity ranges from 500 to 2000 kg per batch, with dimensions and configurations (stationary or skid-mounted) tailored to your production requirements and available space.
